SPECS:

Engine Type: ZS154FMI-2

Cooling System: air cooled

Number of Cylinder: 10°，Single cylinder, 4-stroke,air-cooling, camshaft upward, with balance shaft, tilting (10°leaned)”

Compression Ratio: 9.0:1

Bore x Stroke: 54×54

Max Power[Kw/r/m]: (6.3(1±10%))/(7500(1±5%))

Max Torque[N.m/r/m]: (8.8(1±10%))/(5500(1±5%))

Transmission: Constant mesh, two stage transmission ,4-speed Gearshift

Starting System: kick start

Final Drive: chain drive

Ignition Type: CDI

Battery: no

Front Suspension: 33/L=630mm/15

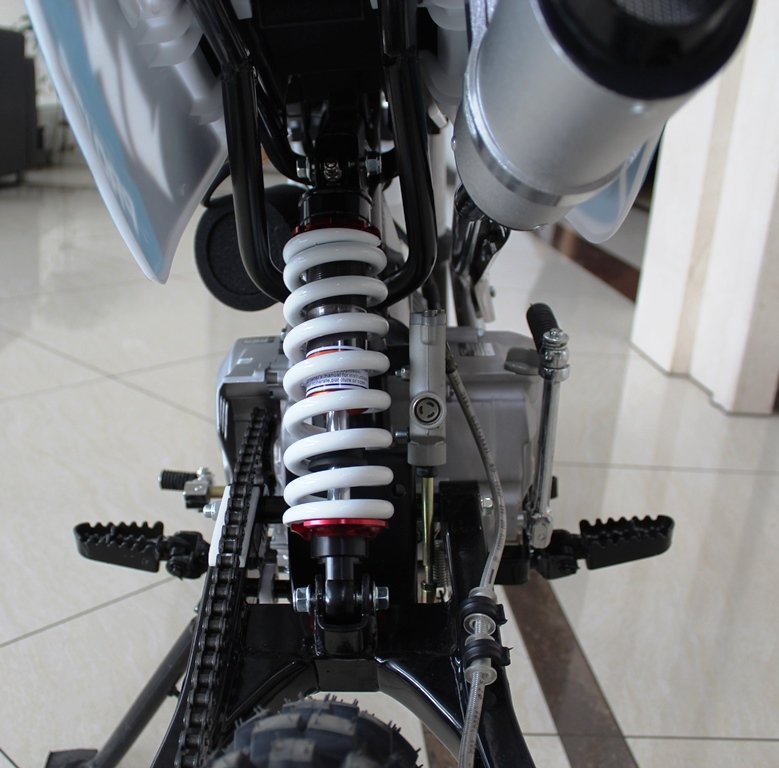

Rear Suspension: L=280/10/8

Front Brake: disc

Rear Brake: disc

Front Tires: 60/100-14

Rear Tires: 80/100-12

Weight Capacity: 176 lbs

Net Weight: 124 lbs

Gross Weight: 143 lbs

Overall Length: 1700mm

Overall Width: 720mm

Overall Height: 1000mm

Carton DimensionsLXWXH: 1500*380*640mm

Seat Height: 28 inches

Wheelbase: 1170mm

Min Ground Clearance: 240mm

Fuel Capacity: 4L

Engine Kill Switch: yes
